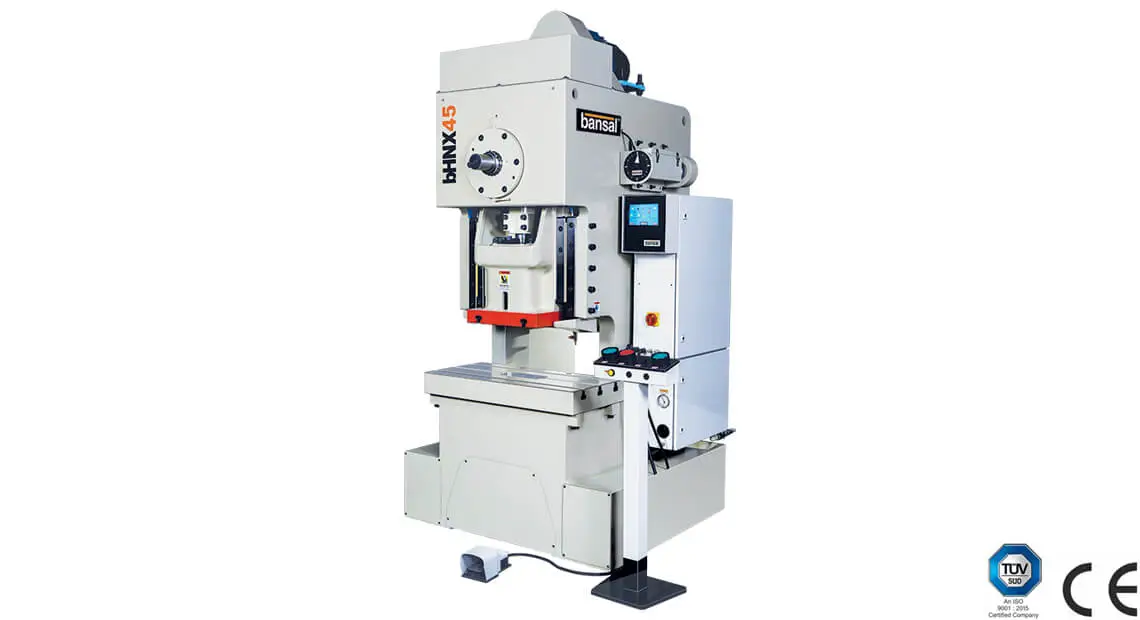

bHNX- ALL MODELS ARE WITHOUT SHANK HOLDER
NG = Non Geared
| SPECIFICATIONS | MODEL | ||||||
| bHNX – 16 | bHNX – 25 | bHNX – 35 | bHNX – 45 | bHNX – 60 | |||
| Type | NG | NG | NG | NG | NG | ||
| Capacity | tf | 16 | 25 | 35 | 45 | 60 | |
| Stroke Length (Fixed) | mm | 20 | 20 | 20 | 20 | 25 | |
| Speed (Variable) | mm | 300 ~ 500 | 300 ~ 500 | 300 ~ 500 | 300 ~ 500 | 200 ~ 400 | |
| Rating Point | mm | 1.0 | 1.0 | 1.0 | 1.0 | 1.2 | |
| Bolster Area (LR X FB) | mm | 650 X 350 | 650 X 350 | 860 X 400 | 900 X 450 | 1000 X 520 | |
| Bolster Thickness | mm | 75 | 75 | 85 | 110 | 115 | |
| Die Height | mm | 210 | 210 | 250 | 270 | 300 | |
| Slide Area (LRxFB) | mm | 330 X 250 | 330 X 250 | 380 X 300 | 430 X 350 | 480 X 400 | |
| Slide Adjustment | mm | 30 | 30 | 40 | 40 | 50 | |
| Throat Depth | mm | 185 | 185 | 210 | 235 | 270 | |
| Upright Distance | mm | 415 | 415 | 490 | 530 | 570 | |
| Main Motor | HP X P | 3 X 4 | 3 X 4 | 5 X 4 | 7.5 X 4 | 10 X 4 | |
| Floor to Bolster | mm | 800 | 800 | 800 | 800 | 900 | |
| Overall Space (W X D X H) | mm | 1000 X 1350 X 2400 | 1000 X 1450 X 2400 | 1100 X 1550 X 2550 | 1300 X 1600 X 2650 | 1400 X 1950 X 3100 | |
