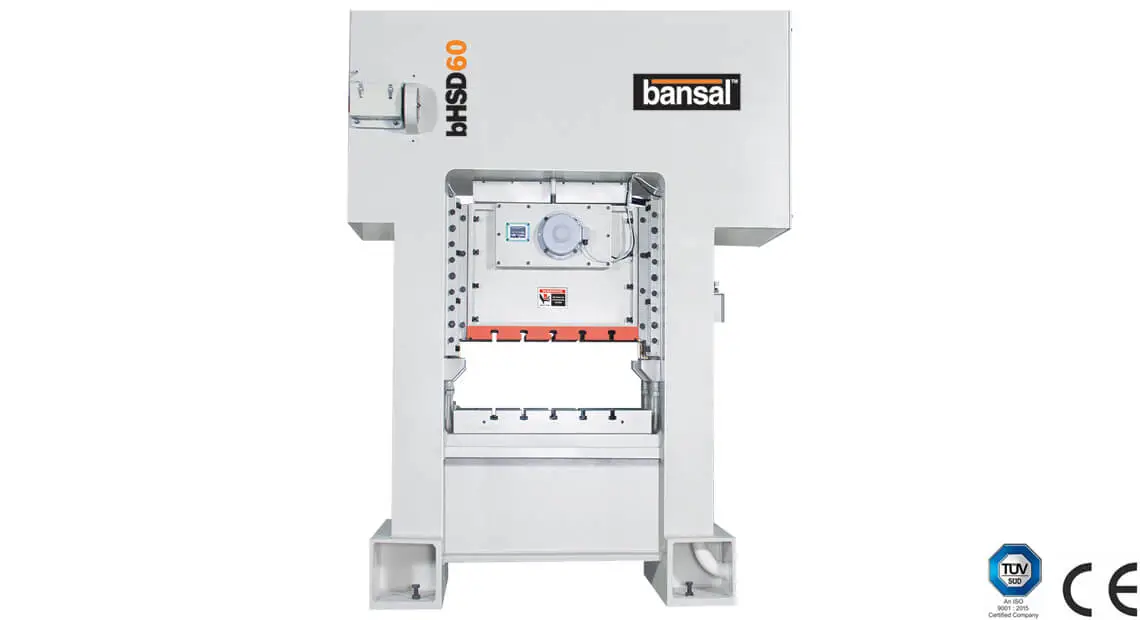

bHSD Series High Speed Power Press
Home
Products
Power Press
bHSD Series High Speed Power Press
Features
Monolithic Rigid frame construction ensures less vibrations
Precise 8 Point long guide ways with renewable bronze liners
Mechanical Crank Balancing reduces eccentric thrust generated from crank movement
Re-circulating Lubrication with monitoring system
SPECIFICATIONS
MODEL
bHSD –
45
bHSD –
60
bHSD –
80
Capacity
tf
45
60
80
No of Suspension Point
–
1
1
1
Stroke Length (Fixed)
mm
30
30
30
Speed
Fixed
spm
150
140
140
Variable
spm
100 ~ 200
100 ~ 200
100 ~ 200
Rating Point
mm
1.3
1.5
1.5
Bolster Area (LR X FB)
mm
700 X 550
800 X 600
850 X 630
Bolster Thickness
mm
110
115
115
Die Height
mm
270
300
330
Slide Area (LR X FB)
mm
510 X 450
700 X 550
750 X 600
Slide Adjustment
mm
40
40
40
Side Opening ( W X H )
mm
280 X 320
300 X 350
300 X 350
Main Moter
Fixed
HP X P
5 X 4
7.5 X 4
10 X 4
Variable
7.5 X 4
10 X 4
15 X 4
Floor to Bolster
mm
800
900
900
Overall Space (W X D X H)
mm
2800 X 1100 X 2900
3000 X 1300 X 3300
3100 X 1350 X 3400
Standard Accessories
PLC with Touch Screen HMI
Temperature Sensors with interlocking
Motorised Recirculating Lubrication
Crankshaft on Bearings
Center Guiding of Slide with Roller Bearings
Crank Balancing Mechanism
Motorised Slide Adjustment (60T and above)
Digital Die Height Indicator
Cam Limit Switch with Proxy
Dual Solenoid Valve with Silencer
Mechanical Crank Angle Indicator
24V DC Electrical Control Panel
Counter Balancers for Slide and Upper Die Balance
Foot Switch
Photo Electric Safety Guard
Anti-Vibration Mount
Die Area Light
Optional Accessories
Programmable Cam Controller
Variable Speed Thru VFD
Quick Die Change System (QDCS)
Automation Line & Accessories
Portable Operator Stand
Load Monitor
Power Take Off Shaft
