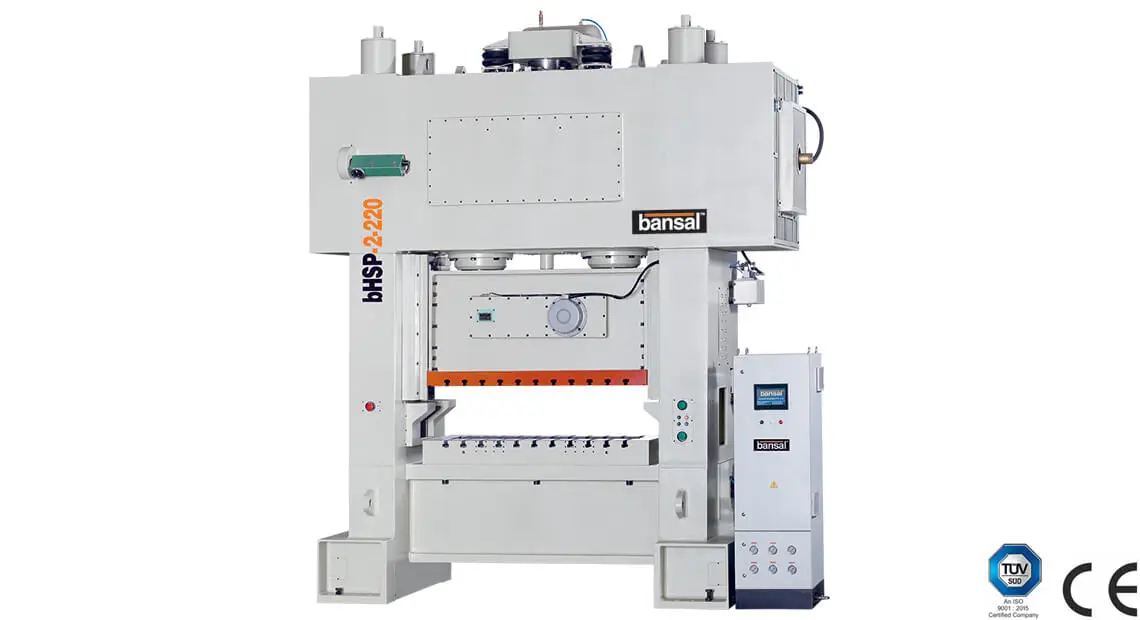

bHSP Series High Speed Power Press (Plunger) - Bansal

Contact Info

12/A, Mirnada City Tower, NYC
+91 8141185206
info@bansalpresses.com

Features

The four piece fabrication frame is hydraulically pre-stressed by tie rods and nuts to ensure great rigidity during high precision progressive blanking
Plunger guided design with hydraulic thread locking eliminates changes in guide clearance, maintaining thus increasing resistance from front to back loads created by rotation of eccentric shaft
High precision 8 point bearing guides fitted with roller guides, harden guides with backlash free movement ensure high accuracy
Hydraulic stick release device solves tool jam (Stick) problem in seconds.
Dynamic Balancing Device is provided to counterbalance eccentric thrust generated from crank rotation & slide movement, ensure more stable and accurate performance

SPECIFICATIONS			MODEL
SPECIFICATIONS			bHSP – 2 – 125	bHSP – 2 – 160	bHSP – 2 – 220	bHSP – 2 – 300
Capacity		tf	125	160	220	300
No of Suspension Point		–	2	2	2	2
Stroke Length (Fixed)		mm	35	35	35	35
Speed	Fixed	spm	130	130	120	110
Speed	Variable	spm	80 ~ 200	80 ~ 200	80 ~ 200	80 ~ 160
Rating Point		mm	1.5	1.5	1.5	2.0
Bolster Area (LR X FB)		mm	1400 X 700	1600 X 750	1900 X 900	2000 X 1000
Bolster Thickness		mm	135	165	200	210
Die Height		mm	360	380	400	450
Slide Area (LR X FB)		mm	1200 X 650	1400 X 700	1800 X 800	1900 X 900
Slide Adjustment		mm	40	40	40	50
Side Opening ( W X H )		mm	350 X 400	350 X 400	400 X 500	400 X 500
Main Motor	Fixed	HP X P	15 X 4	15 X 4	25 X 4	30 X 4
Main Motor	Variable	HP X P	20 X 4	20 X 4	30 X 4	40 X 4
Floor to Bolster		mm	1000	1000	1100	1100
Overall Space (W X D X H)		mm	3800 X 2000 X 3850	4300 X 2350 X 4200	4900 X 2530 X 4740	5250 X 2700 X 4880

Standard Accessories

Four Piece Heavy Duty welded construction
Hydraulically Pre-stressed by Tie Rods
Motorised Slide Adjustment
Digital Die Height Indicator
Variable Frequency Drive
Hydraulic Thread Locking
Hydraulic Stick Jam Release thru Tie Rods
Centralised Recirculating Lubricaon with interlocking
Mechanical Crank Angle Indicator
8 Point Hardened and Ground Gibbing
L M Bearings in Guideways
Counter Balancers for Slide and Upper Die Balance
Mechanical Crank Balancing Mechanism
Dual Solenoid Valve with Silencer
24V DC Electrical Control Panel
Foot Switch
Photo Electric Safety Guard
Anti-Vibration Mount
Die Area Light
PLC with HMI

Optional Accessories
