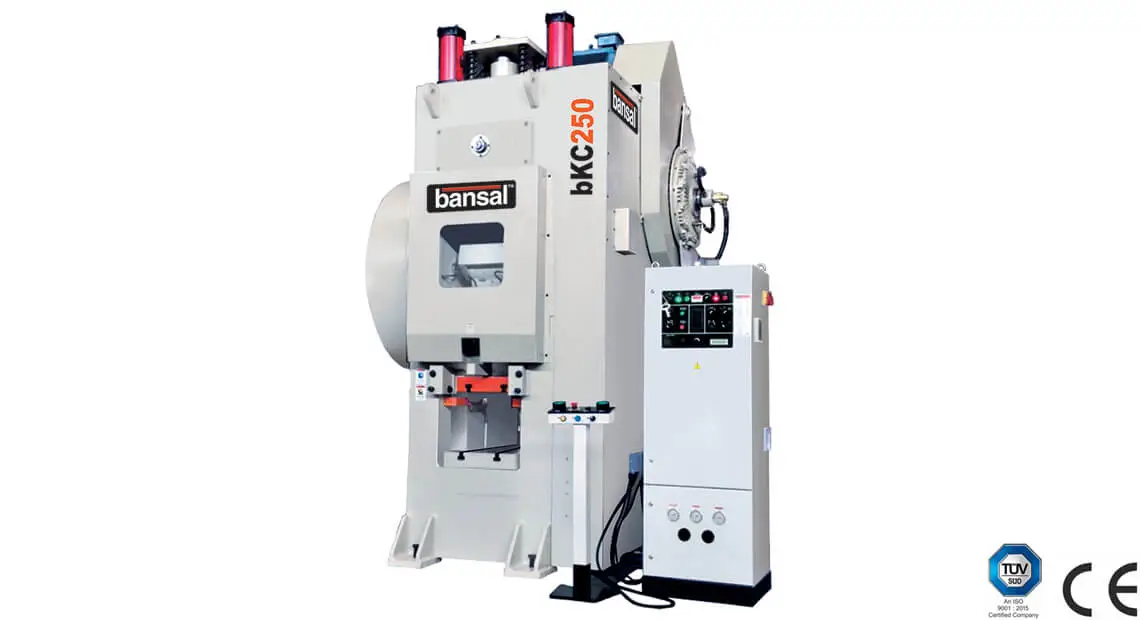

bKC Series Knuckle Joint Power Press

Compact, Space Saving, Highly Rigid Machine
Delivers convincing performance with an extremely high rigidity in the overall system
Permits tight component tolerances and reliable repeat accuracy even with fluctuating material thickness and strength. Better Mechanical Characteristics
Cold forging technology reduce material waste and most economical for manufacturing high precision parts
These Presses are most suitable for Cold Forging, Coining operations etc

SPECIFICATIONS		MODEL
SPECIFICATIONS		bKC – 250	bKC – 400	bKC – 650	bKC – 1000
Type		SG	SG	SG	SG
Capacity	tf	250 Tonne	400 Tonne	650 Tonne	1000 Tonne
Stroke Length Fixed	mm	120	160	160	160
Speed Fixed	spm	40	32	30	30
Rating Point	mm	4.0	6.0	8.0	8.0
Bolster Area (LR X FB)	mm	500 X 600	550 X 660	600 X 700	700 X 800
Bolster Thickness	mm	100	120	150	180
Die Height	mm	370	400	400	500
Slide Area (LRxFB)	mm	400 X 420	400 X 500	450 X 550	480 X 650
Slide Adjustment	mm	15	15	15	15
Main Motor	HPXP	20 X 4	40 X 4	50 X 4	75 X 4
Air Pressure	kg/cm	5	5	5	5
Bed Knockout Device (Optional)
Capacity	tf	10	15	30	50
Stroke Length	mm	50	60	70	70

Material and Specifications are subject to change without notice.

SG = Standard Geared
