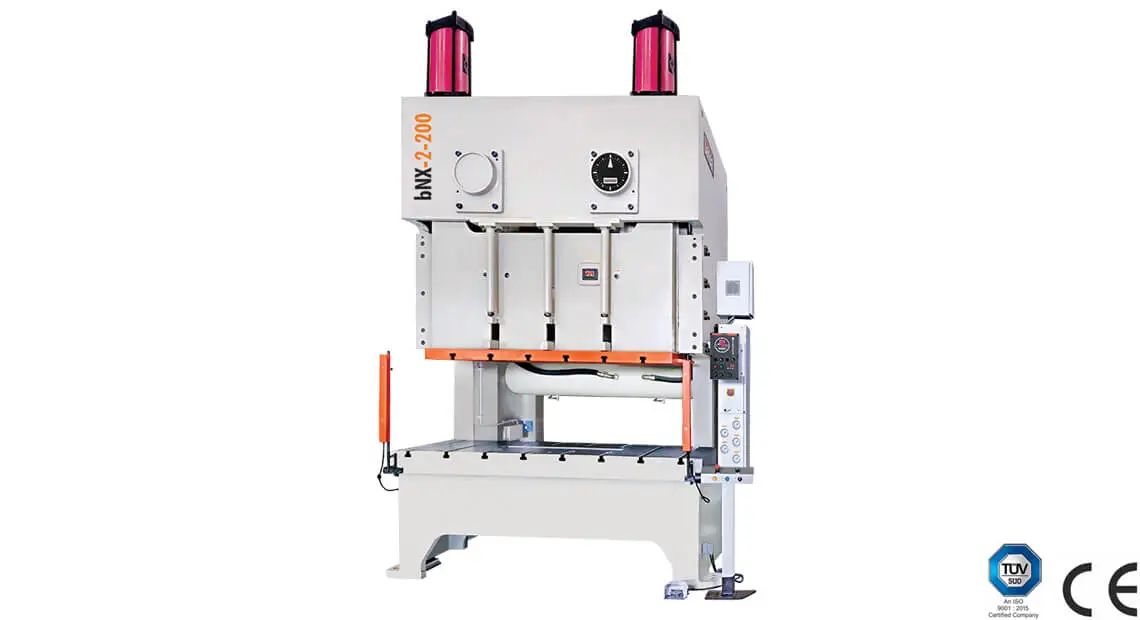

SG = Standard Geared / HG = High Speed Geared / NG = Non Geared
| SPECIFICATIONS | MODEL | |||||||||||
| bNX2 – 110 | bNX2 – 160 | bNX2 – 200 | bNX2 – 250 | bNX2 – 300 | ||||||||
| Type | SG | HG | SG | HG | SG | HG | SG | HG | SG | HG | ||
| Capacity | tf | 110 | 160 | 200 | 250 | 300 | ||||||
| Stroke Length (Fixed) | mm | 160 | 100 | 200 | 130 | 220 | 150 | 250 | 180 | 280 | 180 | |
| Speed | Fixed | SPM | 50 | 80 | 40 | 60 | 35 | 50 | 30 | 45 | 30 | 40 |
| Variable | 40~60 | 60~100 | 30~50 | 40~80 | 25~45 | 35~70 | 20~35 | 30~60 | 20~35 | 25~50 | ||
| Rating Point | mm | 5.0 | 3.0 | 6.0 | 4.0 | 7.0 | 4.0 | 7.0 | 5.0 | 8.0 | 5.0 | |
| Bolster Area (LR X FB) | mm | 1880 X 680 | 2040 X 760 | 2420 X 840 | 2700 X 920 | 2700 X 940 | ||||||
| Bolster Thickness | mm | 135 | 160 | 170 | 180 | 190 | ||||||
| Die Height | mm | 400 | 450 | 500 | 550 | 550 | ||||||
| Slide Area (LRxFB) | mm | 1430 X 520 | 1560 X 580 | 1850 X 650 | 2100 X 700 | 2100 X 800 | ||||||
| Slide Adjustment | mm | 75 | 75 | 90 | 90 | 100 | ||||||
| Upright Distance | mm | 1480 | 1600 | 1950 | 2200 | 2200 | ||||||
| Main Motor | Fixed Speed | HPXP | 10 X 4 | 15 X 4 | 20 X 4 | 25 X 4 | 30 X 4 | |||||
| Variable Speed | HPXP | 15 X 4 | 20 X 4 | 25 X 4 | 30 X 4 | 40 X 4 | ||||||
| Floor to Bolster | mm | 900 | 900 | 1000 | 1000 | 1000 | ||||||
| Foot Size (LR X FB) | mm | 2000 X 1750 | 2150 X 2025 | 2500 X 2175 | 2800 X 2475 | 2850 X 2550 | ||||||
| Overall Space (W X D X H) | mm | 2200 X 1800 X 3120 | 2375 X 2065 X 3350 | 2700 X 2200 X 3800 | 3000 X 2500 X 4150 | 3050 X 2600 X 4400 | ||||||
| OPTIONAL | ||||||||||||
| Pneumatic Die Cushion | Capacity | tf | 6 X 2 | 8 X 2 | 10 X 2 | 10 X 2 | 14 X 2 | |||||
| Stroke Length | mm | 90 | 100 | 120 | 120 | 140 | ||||||
| Pad Area | mm | 480 X 300 X 2 | 560 X 340 X 2 | 640 X 440 X 2 | 640 X 440 X 2 | 640 X 440 X 2 | ||||||
