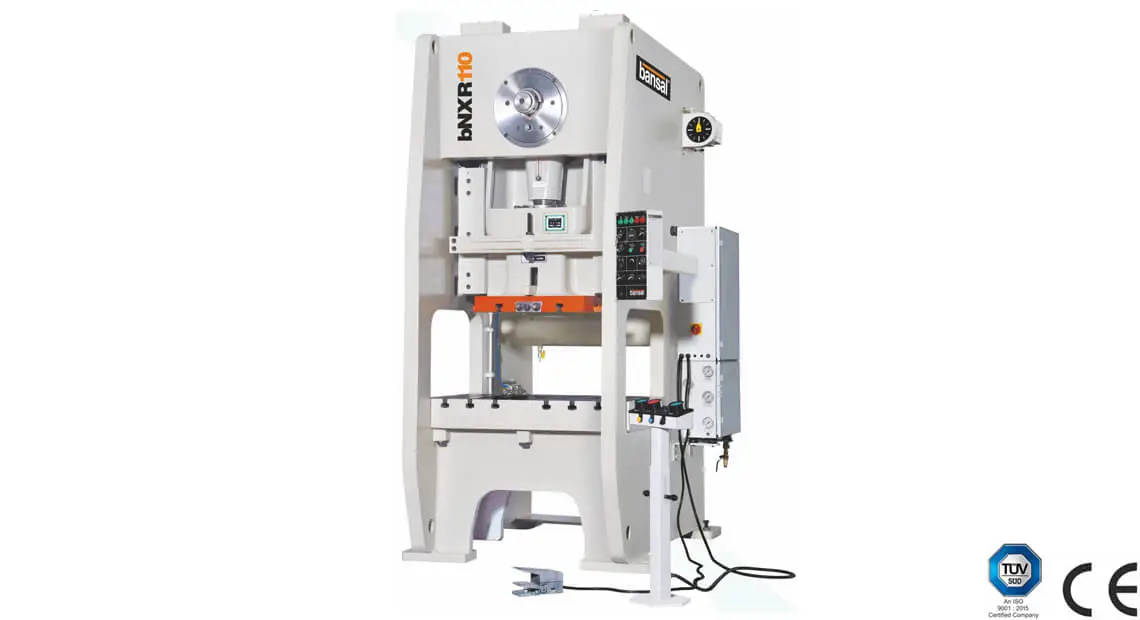

bNXR Series Ring Frame Power Press

Features

  • Centre Guiding of Slide with extra long & surface area provides best possible resistance to slide tripping caused by off centre loading in the die
  • Frame design virtually eliminates angular deflection
  • Suitable for progressive dies applicaon, reduces maintenance cost of tooling

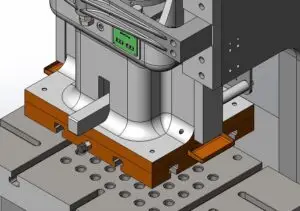

THE ULTIMATE POSSIBLE RESISTANCE TO SLIDE TIPPING & OFF CENTER LOADING

These guides are designed with extra length & surface area to provide best possible resistance to slide tipping caused by off center loading in the die and most suitable for highly precise pressing applications. This increases tool life.

SPECIFICATIONS MODEL
bNXR – 60 bNXR – 80 bNXR – 110 bNXR – 160 bNXR – 200 bNXR – 250
Type SG HG NG SG HG NG SG HG NG SG HG SG HG SG HG
Capacity tf 60 Tonne 80 Tonne 110 Tonne 160 Tonne 200 Tonne 250 Tonne
Stroke Length Fixed mm 120 50 40 140 60 40 160 60 40 200 80 220 80 250 100
Variable mm 8~100 – – 8~100 – – 8~125 – – 20~160 – – – – –
Speed Fixed SPM 60 90 130 60 90 130 50 80 130 40 60 35 60 30 50
Variable 50~70 70~110 80~160 50~70 70~110 80~160 40~60 70~110 80~150 30~50 40~80 35~45 40~80 20~35 30~70
Rating Point mm 4.0 2.6 2.3 4.5 3.0 2.3 5.0 3.0 2.5 6.0 4.0 6.0 4.0 7.0 4.0
Bolster Area (LR X FB) mm 800 X 520 900 X 600 1000 X 680 1150 X 760 1250 X 840 1350 X 900
Bolster Thickness mm 120 130 140 165 180 180
Die Height mm 300 330 360 450 500 500
Slide Area (LRxFB) mm 480 X 400 560 X 450 650 X 520 720 X 580 860 X 680 950 X 800
Slide Adjustment mm 75 75 90 100 120 120
Side Opening ( W X H ) mm 300 X 400 330 X 450 360 X 500 450 X 580 500 X 680 500 X 700
Upright Distance mm 850 950 1060 1210 1310 1410
Main Motor Fixed HPXP 7.5 X 4 7.5 X 6 10 X 4 10 X 6 10 X 4 10 X 6 15 X 4 20 X 4 25 X 4
Variable 10 X 4 15 X 4 15 X 4 20 X 4 25 X 4 30 X 4
Floor to Bolster mm 900 900 900 900 1000 1000
Foot Size mm 1120 X 1400 1280 X 1490 1420 X 1655 1590 X 1985 1710 X 2095 1850 X 2305
Anchor Bolt Size mm 1020 X 1150 1180 X 1240 1310 X 1355 1460 X 1655 1590 X 1710 1720 X 1915
Overall Space (W X D X H) mm 1275 X 1540 X 2660 1425 X 1640 X 2785 1525 X 1910 X 3060 1650 X 2265 X 3450 1775 X 2470 X 3850 1850 X 2720 X 4025
OPTIONAL
Pneumatic Die Cushion Tonnage tf 6 6 8 10 12 14
Stroke mm 70 70 90 100 110 110
Pad Area mm 380 X 260 380 X 260 480 X 340 540 X 340 640 X 440 640 X 440
bNXR- 110, 160, 200, 250, ARE WITHOUT SHANK HOLDER
Material and Specifications are subject to change without notice.
SG = Standard Geared / HG = High Speed Geared / NG = Non Geared

Standard Accessories

  • Motorised Grease Lubrication
  • Counter Balancers for Slide and Upper Die Balance
  • Rotary Cam Limit Switch
  • Anti-Repeat Safety through PLC
  • Dual Solenoid Valve
  • 24V DC Electrical Control Panel
  • PLC with HMI
  • Hydraulic Overload Safety
  • Digital Die Height Indicator
  • Motorised Slide Adjustment (60T & above)
  • Miss Feed Sockets
  • Air Outlets
  • Foot Switch
  • Knockout System
  • Photo Electric Safety Guard
  • Anti-Vibration Mount
  • Die Area Light

Optional Accessories

  • Variable Stroke
  • Pneumatic Die Cushion
  • Programmable Cam Controller
  • Variable Speed Thru VFD
  • Quick Die Change System (QDCS)
  • Automation Line & Accessories
  • Portable Operator Stand
  • Wet Clutch
  • Load Monitor
  • Power Take Off Shaft
