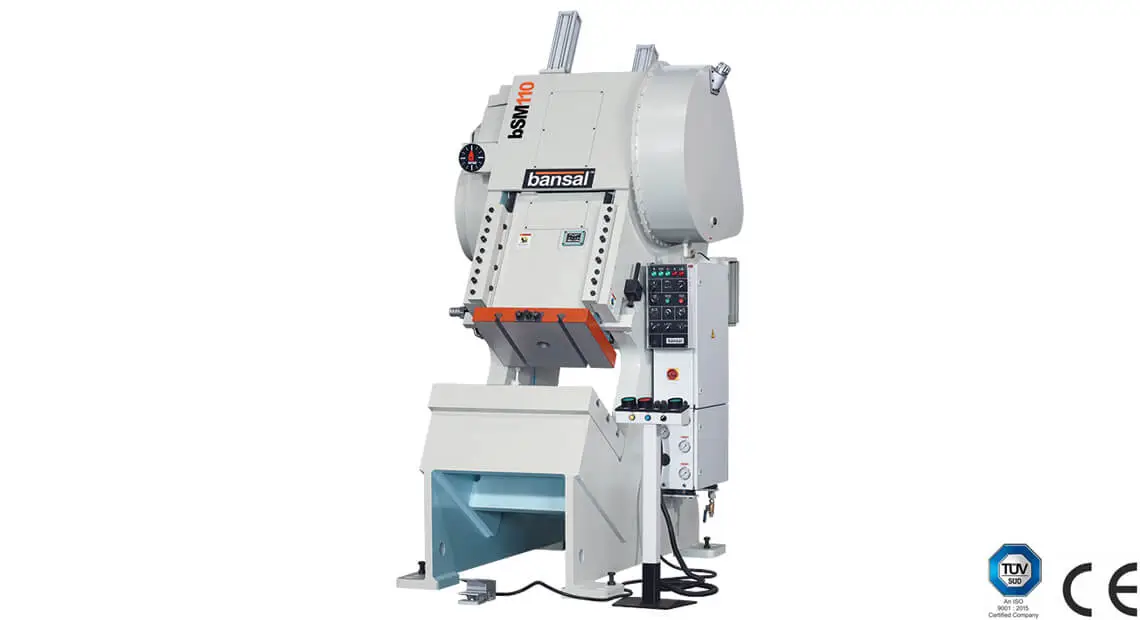

bSM – 110, 160, 200, ARE WITHOUT SHANK HOLDER
Material and Specifications are subject to change without notice.
SG = Standard Geared / HG = High Speed Geared
| SPECIFICATIONS | MODEL | |||||||||||||||
| bSM – 35 | bSM – 45 | bSM – 60 | bSM – 80 | bSM – 110 | bSM – 160 | bSM – 200 | ||||||||||
| Type | SG | HG | SG | HG | SG | HG | SG | HG | SG | HG | SG | HG | SG | HG | ||
| Capacity | tf | 35 Tonne | 45 Tonne | 60 Tonne | 80 Tonne | 110 Tonne | 160 Tonne | 200 Tonne | ||||||||
| Stroke Length | Fixed | mm | 80 | 40 | 90 | 50 | 120 | 50 | 140 | 60 | 160 | 60 | 200 | 80 | 220 | 80 |
| Variable | mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| Speed | Fixed | SPM | 80 | 100 | 70 | 90 | 70 | 90 | 60 | 90 | 50 | 80 | 40 | 60 | 35 | 60 |
| Variable | 70~90 | 70~120 | 60~80 | 70~120 | 50~70 | 70~110 | 50~70 | 70~110 | 40~60 | 70~110 | 30~50 | 40~80 | 25~45 | 40~80 | ||
| Rating Point | mm | 3.2 | 2.5 | 3.2 | 2.6 | 4.0 | 2.6 | 4.5 | 3.0 | 5.0 | 3.0 | 6.0 | 4.0 | 6.0 | 4.0 | |
| Bolster Area (LR X FB) | mm | 780 X 400 | 840 X 450 | 900 X 520 | 1050 X 600 | 1150 X 680 | 1250 X 780 | 1410 X 840 | ||||||||
| Bolster Thickness | mm | 85 | 110 | 115 | 125 | 135 | 165 | 175 | ||||||||
| Die Height | mm | 250 | 270 | 300 | 330 | 360 | 450 | 500 | ||||||||
| Slide Area (LRxFB) | mm | 380 X 300 | 430 X 350 | 480 X 400 | 560 X 460 | 650 X 520 | 720 X 580 | 860 X 680 | ||||||||
| Slide Adjustment | mm | 50 | 60 | 75 | 75 | 90 | 100 | 110 | ||||||||
| Throat Depth | mm | 210 | 235 | 270 | 320 | 350 | 390 | 435 | ||||||||
| Upright Distance | mm | 490 | 540 | 570 | 650 | 720 | 810 | 910 | ||||||||
| Inclination | Fixed | Degree | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |||||||
| Variable | 10 / 20 / 30 | 10 / 20 / 30 | 10 / 20 / 30 | 10 / 20 / 30 | 10 / 20 / 30 | 10 / 20 / 30 | 10 / 20 / 30 | |||||||||
| Main Motor | Fixed | HPXP | 3 X 4 | 5 X 4 | 7.5 X 4 | 10 X 4 | 10 X 4 | 15 X 4 | 20 X 4 | |||||||
| Variable | 5 X 4 | 7.5 X 4 | 10 X 4 | 15 X 4 | 15 X 4 | 20 X 4 | 25 X 4 | |||||||||
| Floor to Bolster | mm | 800 | 800 | 900 | 900 | 900 | 1000 | 1000 | ||||||||
| Foot Size | mm | 900 X 1400 | 950 X 1500 | 950 X 1500 | 1100 X 1750 | 1190 X 2000 | 1300 X 2400 | 1450 X 2650 | ||||||||
| Overall Space (W X D X H) | mm | 2200 X 1500 X 2400 | 2300 X 1600 X 2600 | 2400 X 1700 X 2800 | 2475 X 1750 X 2950 | 2550 X 2300 X 3350 | 2950 X 2500 X 3900 | 3100 X 2750 X 4200 | ||||||||
